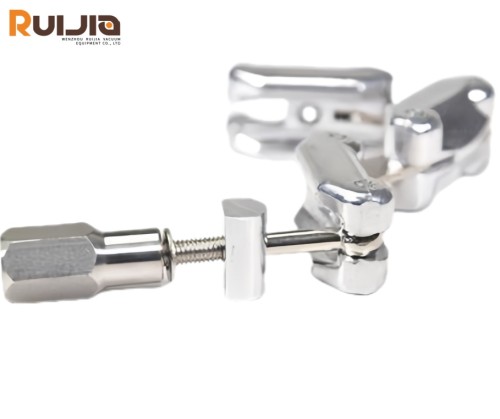

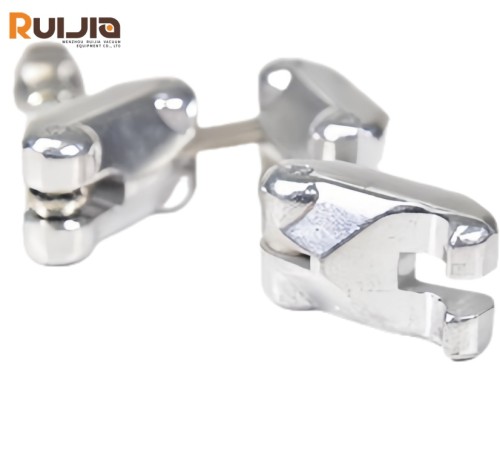

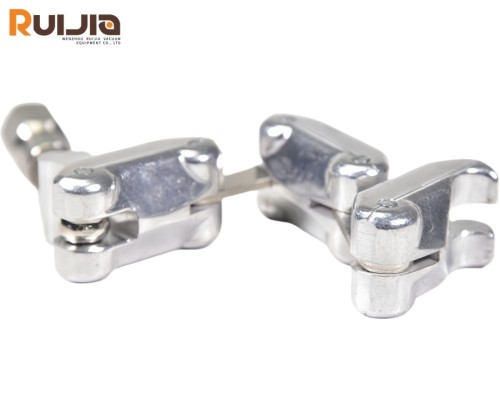

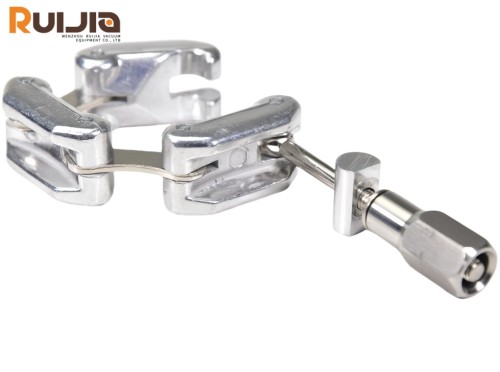

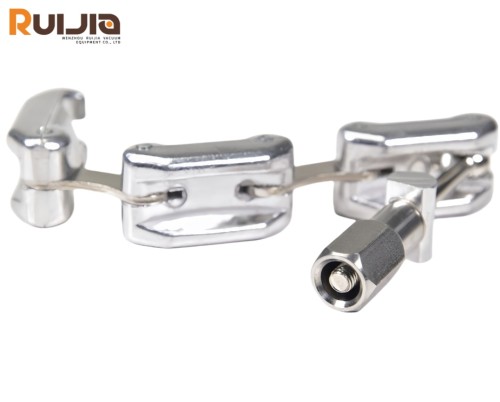

KF Vacuum flange chain clamp Aluminium KF16-KF63

Item specifics

Product Name: KF Vacuum flange chain clamp Aluminium KF16-KF63

Size: KF10,KF25,KF40,KF50,KF63

Seal material: Viton,Silicone,Buna-N seal

Helium Leak Test: 1×10 -9 Pa・m³/sec or less

Review

Description

KF Vacuum flange chain clamp Aluminium KF16-KF63 feature

Advantage

●Fast opening and closing: The unique design allows the chain clamp to open and close quickly, facilitating quick installation and removal operations in vacuum systems.

●Strong sealing force: the design of the chain clamps provides high sealing force and ensures good vacuum sealing of the connection area by applying uniform pressure to the KF flange, preventing gas leakage.

●Safe and reliable: Equipped with safety screw clips to avoid accidental loosening or “tripping” of the chain clamps, ensuring safety and stability during vacuum system operation.

KF Vacuum Flange Chain Clamp Aluminium KF16-KF63 specifications

Product Name	KF Vacuum chain clamp Aluminium KF16-KF63
Brand	RUIJIA
Size	KF10,KF25,KF40,KF50,KF63
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types	KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)

KF Vacuum Flange Chain Clamp Aluminium KF16-KF63 parameters

KF Vacuum flange chain clamp Aluminium KF16-KF63 Unit:mm

KF Vacuum flange chain clamp Aluminium KF16-KF63 detail

Model No.	Flange size	Material	A	B	T
CC-K-16	KF10/16	Block Aluminum	22	56	20.3
CC-K-25	KF25	Block Aluminum	32	66	20.3
CC-K-40	KF40	Block Aluminum	46	80	20.3
CC-K-50	KF50	Block Aluminum	69	100	20.3
CC-K-63	KF63	Block Aluminum	78	112	20.3
