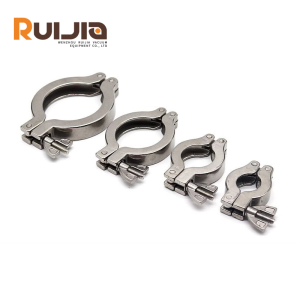

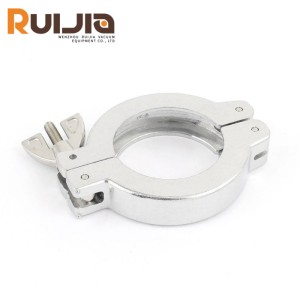

KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China
Item specifics
- Size
- KF10,KF25,KF40,KF50.
- Material
- SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
- Seal material
- Viton,Silicone,Buna-N seal
- Standard
- KF Standard
- Temperature
- -200~800℃
- Working Pressure
- Vacuum~atmosphere pressure
Review
Description
KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China feature
●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
● Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.
KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China specifications
|
Product Name
|
KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF10,KF25,KF40,KF50. | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Vacuum Flange Fittings Aluminium Heavy Duty Single Pin Clamps Wholesale China Unit:mm
| Model No. | Material | A | B | C | Surface Treatment |
| KF16CLA | Aluminum | 63 | 42.5 | 16 | |
| KF25CLA | Aluminum | 72 | 54 | 16 | |
| KF40CLA | Aluminum | 90 | 70 | 16 | |
| KF50CLA | Aluminum | 114 | 90 | 20 | |
| KF16CLA-NP | Aluminum | 63 | 42.5 | 16 | Nickle Plating |
| KF25CLA-NP | Aluminum | 72 | 54 | 16 | Nickle Plating |
| KF40CLA-NP | Aluminum | 90 | 70 | 16 | Nickle Plating |
| KF50CLA-NP | Aluminum | 114 | 90 | 20 | Nickle Plating |
Special Sizes Available Upon Request.
