KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading   Clamps,Stainless Steel,Wholesale China
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading   Clamps,Stainless Steel,Wholesale China
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading   Clamps,Stainless Steel,Wholesale China
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading   Clamps,Stainless Steel,Wholesale China
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading   Clamps,Stainless Steel,Wholesale China

Item specifics

Size
KF16,KF25,KF40,KF50.
Material
SS304, SS316L, 6061T6 Alu
Seal material
Viton,Silicone,Buna-N seal
Standard
KF Standard
Temperature
-200~800℃
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Working Pressure
Vacuum~atmosphere pressure

Review

Description

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China feature
●Used in high-tech industries such as semiconductor manufacturing,national defense research,aerospace,bio pharmaceutical,LCD,etc.
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
●the Size is from KF16-KF50,if you need other size,we can provide according to your request.

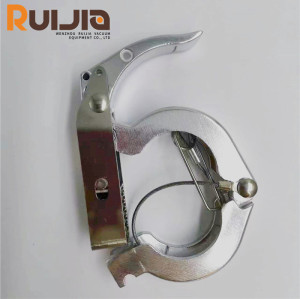

KF flange quick loading clamps
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China specifications
Product Name
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China
Brand
RUIJIA
Size
KF16,KF25,KF40,KF50.
Material
SS304, SS316L, 6061T6 Alu
Seal material
Viton,Silicone,Buna-N seal
Standard
KF Standard
Temperature
-200~800
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Packing
sealed plastic bag with a protective plastic cap.
KF Vacuum clamp types
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
Product parameters
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China                                            Unit:mm
Size Material A B C
KF16 SS304 22.3 63.3 17.3
KF25 SS304 32.3 63.3 17.3
KF40 SS304 46.5 83.5 17.3
KF50 SS304 67.5 104.3 17.3
Special Sizes Available Upon Request.
