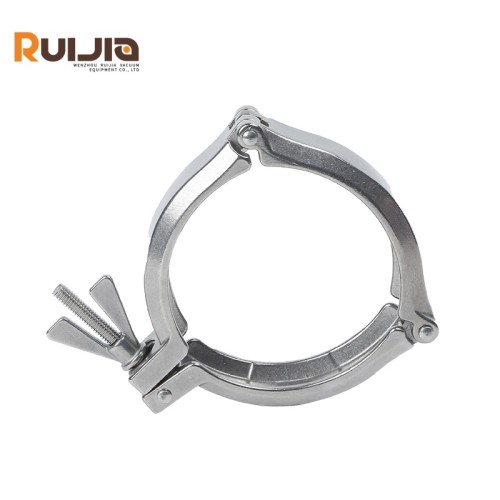

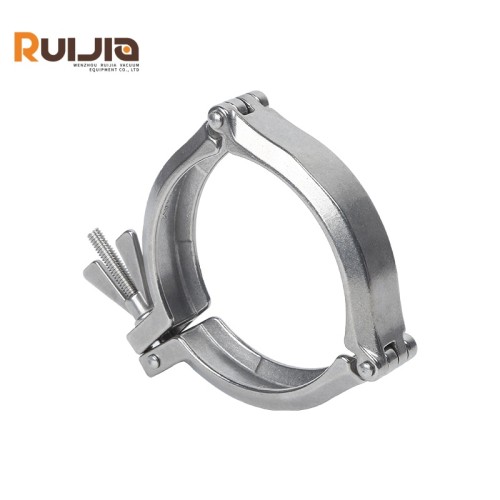

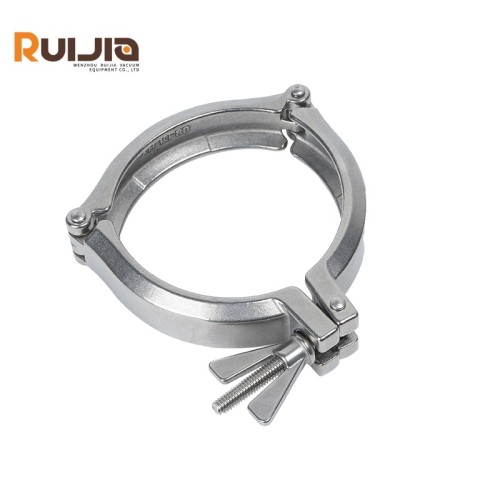

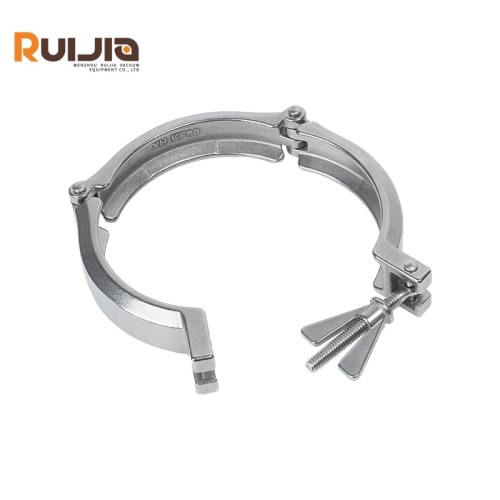

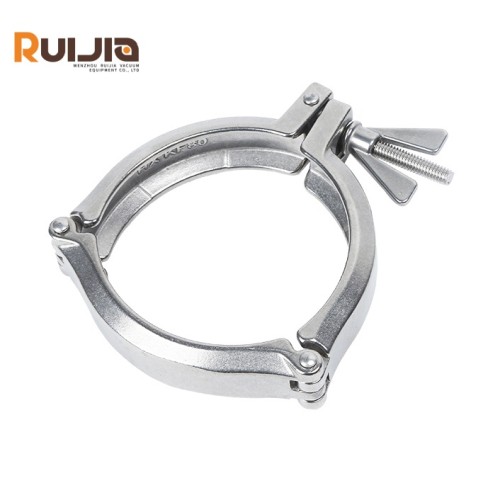

KF 3 pieces Clamps SS304
Item specifics
- Product Name
- KF 3 pieces Clamps SS304
- Size
- KF16,KF25,KF40
- Seal material
- Viton,Silicone,Buna-N seal
- Helium Leak Test
- 1×10 -9 Pa・m³/sec or less
Review
Description
KF 3 pieces Clamps SS304 Feature
Advantage
●Sealing performance: rubber ring seal, good adaptability
●Connection and installation: quick loading and unloading, low installation accuracy requirement.
●Mechanical properties: high strength, good vibration resistance.
●Scope of application: wide temperature range, a variety of field applications
KF 3 pieces Clamps SS304 specifications
| Product Name | KF 3 Pieces Clamps SS304 |
| Brand | RUIJIA |
| Size | KF16,KF25,KF40 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum clamp types | KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |
