304.S.S High Vacuum Electric Operated Butterfly Valves for Vacuum System Wholesale China
Item specifics
- Size
- DN25-DN400
- Material
- SS304, SS316L
- Seal material
- Viton,Silicone,Buna-N seal
- Standard
- JB919/GB607 Standard
- Temperature
- -200~800℃
Review
Description
304.S.S High Vacuum Electric Operated Butterfly Valves for Vacuum System Wholesale China Feature
●Application:A device that uses rotary electric and electronic regulating valve drive devices, suitable for controlling or cutting off fluid media such as water, gas, oil, steam, etc.
●Depending on the specific model and design requirements, it is usually necessary to carefully review the drawings to determine.
●Testing:Sealing performance, corrosion resistance, wear resistance, torque and other tests.
●Flange standard:JB919/GB6070 standard.
304.S.S High Vacuum Electric Operated Butterfly Valves for Vacuum System Wholesale China Specification
|
Product Name
|
304.S.S High Vacuum Electric Operated Butterfly Valves for Vacuum System Wholesale China
|
||
Brand | RUIJIA | ||
Size | DN25-DN400 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | JB919/GB607 Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters

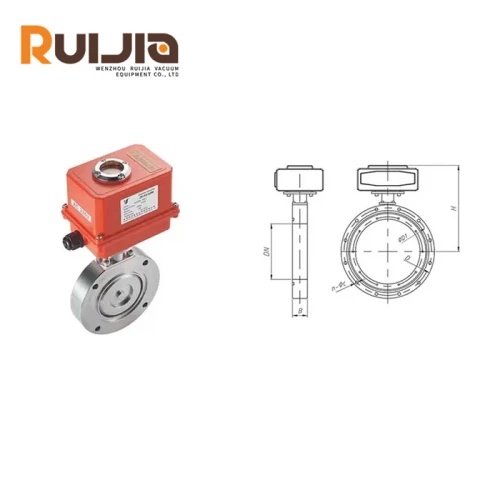

304.S.S High Vacuum Electric Operated Butterfly Valves for Vacuum System Wholesale China Unit:mm
Connection standard:JB919
| Model No. | DN | ΦD | ΦD0 | ΦD1 | H | B | L | B1 | n-Φc |
| GID-25 | 25 | 70 | 55 | 30 | 163.5 | 22 | 166.5 | 114 | 4-Φ7 |
| GID-32 | 32 | 78 | 64 | 36 | 167.5 | 22 | 166.5 | 114 | 4-Φ7 |
| GID-40 | 40 | 85 | 70 | 45 | 171 | 22 | 166.5 | 114 | 4-Φ7 |
| GID-50 | 50 | 110 | 90 | 55 | 184 | 22 | 166.5 | 114 | 4-Φ9 |
| GID-63 | 63 | 125 | 105 | 70 | 196.3 | 26 | 166.5 | 114 | 4-Φ9 |
| GID-80 | 80 | 145 | 125 | 90 | 227.5 | 30 | 195 | 120 | 4-Φ9 |
| GID-100 | 100 | 170 | 145 | 110 | 239.5 | 30 | 195 | 120 | 4-Φ12 |
| GID-125 | 125 | 195 | 170 | 135 | 252.5 | 35 | 195 | 120 | 4-Φ12 |
| GID-150 | 150 | 220 | 195 | 160 | 284.5 | 35 | 254.5 | 159 | 8-Φ12 |
| GID-200 | 200 | 275 | 250 | 215 | 311.5 | 40 | 254.5 | 159 | 8-Φ12 |
| GID-250 | 250 | 330 | 300 | 270 | 340.5 | 45 | 254.5 | 159 | 8-Φ14 |
| GID-300 | 300 | 380 | 350 | 320 | 363.5 | 55 | 254.5 | 159 | 8-Φ14 |
| GID-400 | 400 | 500 | 465 | 420 | 420.5 | 60 | 254.5 | 159 | 8-Φ18 |
Connection standard:GB6070
| Model No. | DN | ΦD | ΦD0 | ΦD1 | H | B | L | B1 | n-Φc |
| GID-25 | 25 | 70 | 55 | 30 | 163.5 | 22 | 166.5 | 114 | 4-Φ7 |
| GID-32 | 32 | 90 | 70 | 36 | 174 | 22 | 166.5 | 114 | 4-Φ9 |
| GID-40 | 40 | 100 | 80 | 45 | 179 | 22 | 166.5 | 114 | 4-Φ9 |
| GID-50 | 50 | 110 | 90 | 55 | 184 | 22 | 166.5 | 114 | 4-Φ9 |
| GID-63 | 63 | 130 | 110 | 70 | 198 | 26 | 166.5 | 114 | 4-Φ9 |
| GID-80 | 80 | 145 | 125 | 90 | 227.5 | 30 | 195 | 120 | 8-Φ9 |
| GID-100 | 100 | 165 | 145 | 110 | 237 | 30 | 195 | 120 | 8-Φ9 |
| GID-125 | 125 | 200 | 175 | 135 | 255 | 35 | 195 | 120 | 8-Φ12 |
| GID-150 | 150 | 225 | 200 | 160 | 387 | 35 | 254.5 | 159 | 8-Φ12 |
| GID-200 | 200 | 285 | 260 | 215 | 316 | 40 | 254.5 | 159 | 12-Φ12 |
| GID-250 | 250 | 335 | 310 | 270 | 343 | 45 | 254.5 | 159 | 12-Φ14 |
| GID-300 | 300 | 425 | 395 | 320 | 388 | 55 | 254.5 | 159 | 12-Φ14 |
| GID-400 | 400 | 510 | 480 | 420 | 425 | 60 | 254.5 | 159 | 16-Φ14 |
Special Sizes Available Upon Request.
