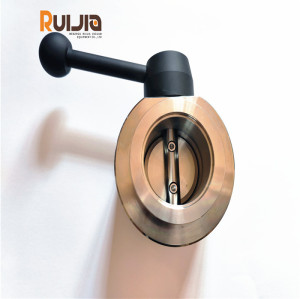

Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application
Item specifics
- Size
- ISI63,ISO80,ISO100
- Material
- SS304, SS316L
- Seal material
- Viton,Silicone,Buna-N seal
- Standard
- ISO Standard
- Working Pressure
- Vacuum~atmosphere pressure
- Helium Leak Test
- 1×10 -9 Pa・m³/sec or less
Review
Description
Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Feature
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:Depending on specific application requirements and design specifications
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Specifications
|
Product Name
|
Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application |
||
Brand | RUIJIA | ||
Size | ISI63,ISO80,ISO100 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
Stainless Steel Vacuum Manual Butterfly Valves ISO-Type for Vacuum System Application Unit:mm
| Model No. | Size | Connector | A | B | C | D | E |
| ISO63BFV | 2.5'' | ISO63 | 93.2 | 96.6 | 191.6 | 112 | 152.3 |
| ISO80BFV | 3.0'' | ISO80 | 95.2 | 103.8 | 192.6 | 125 | 166.3 |
| ISO100BFV | 4.0'' | ISO100 | 101.2 | 120.6 | 195 3/5 | 157 | 200 |
Special Sizes Available Upon Request.
