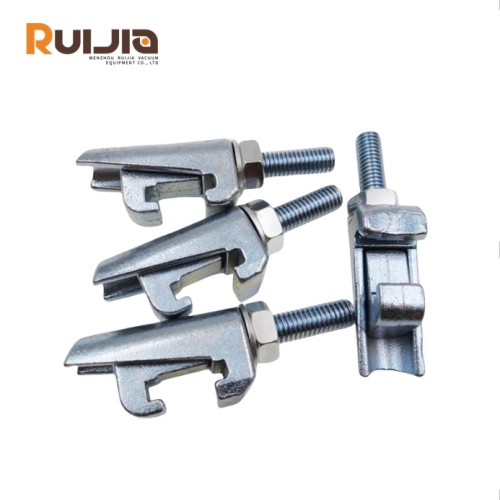

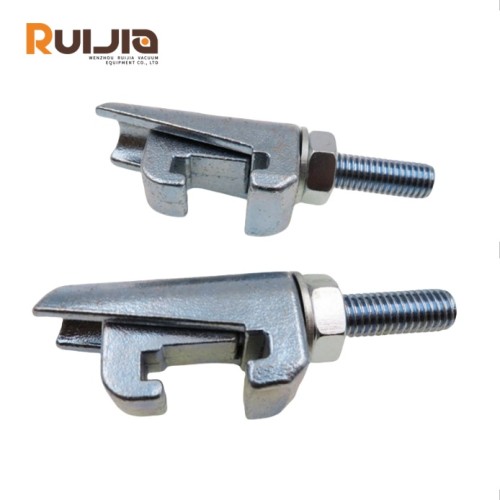

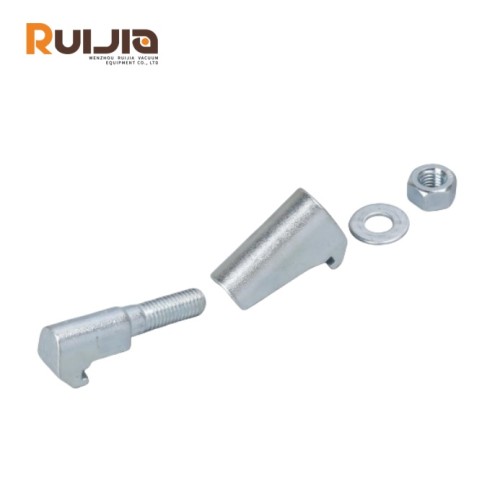

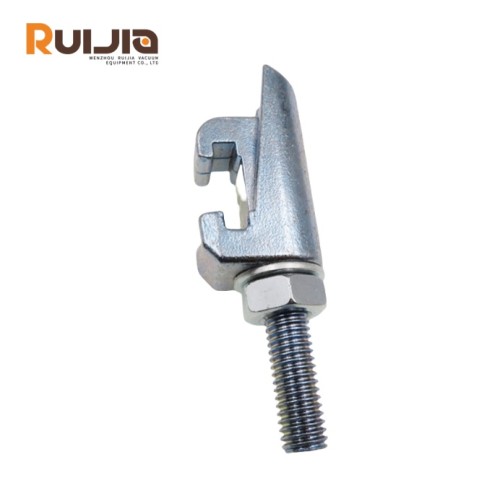

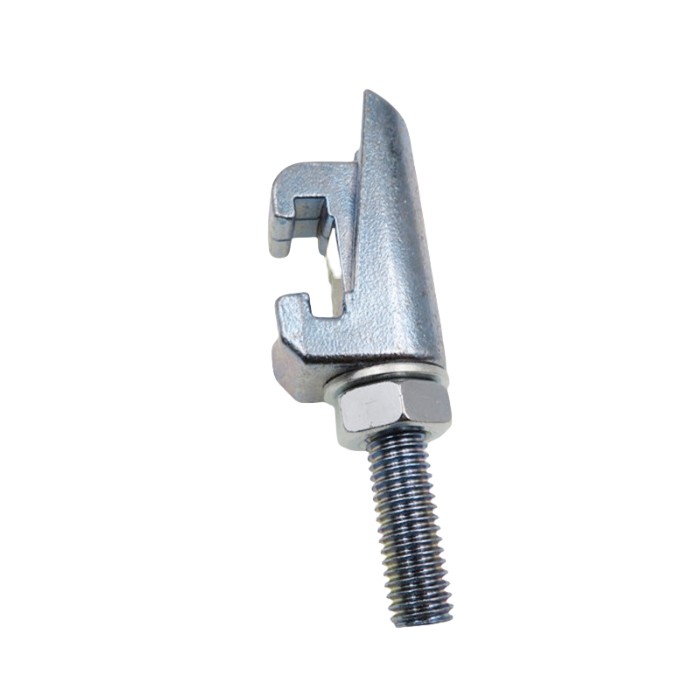

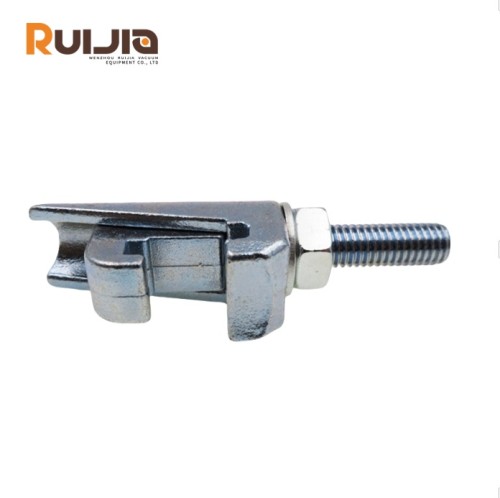

ISO Vacuum double claw clamp 316L.S.S galvanized
Item specifics
- Product Name
- ISO Vacuum double claw clamps galvanized
- Brand
- RUIJIA
- Size
- ISO63-250,ISO320-500,ISO630
- Material
- SS304, SS316L,Steel+Zn Plated
Review
Description
ISO Vacuum double claw clamp 316L.S.S galvanize
●used in semiconductor manufacturing, national defense research etc.
● Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
● The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.
ISO Vacuum Double Claw Clamp 316L.S.S Galvanize
|
Product Name
|
ISO Vacuum Double Claw Clamp 316L.S.S Galvanize |
||
Brand | RUIJIA | ||
Size | ISO63-250,ISO320-500,ISO630 | ||
Material | SS304, SS316L,Steel+Zn Plated | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO Vacuum clamp types
|
ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.
|
||
Product parameters

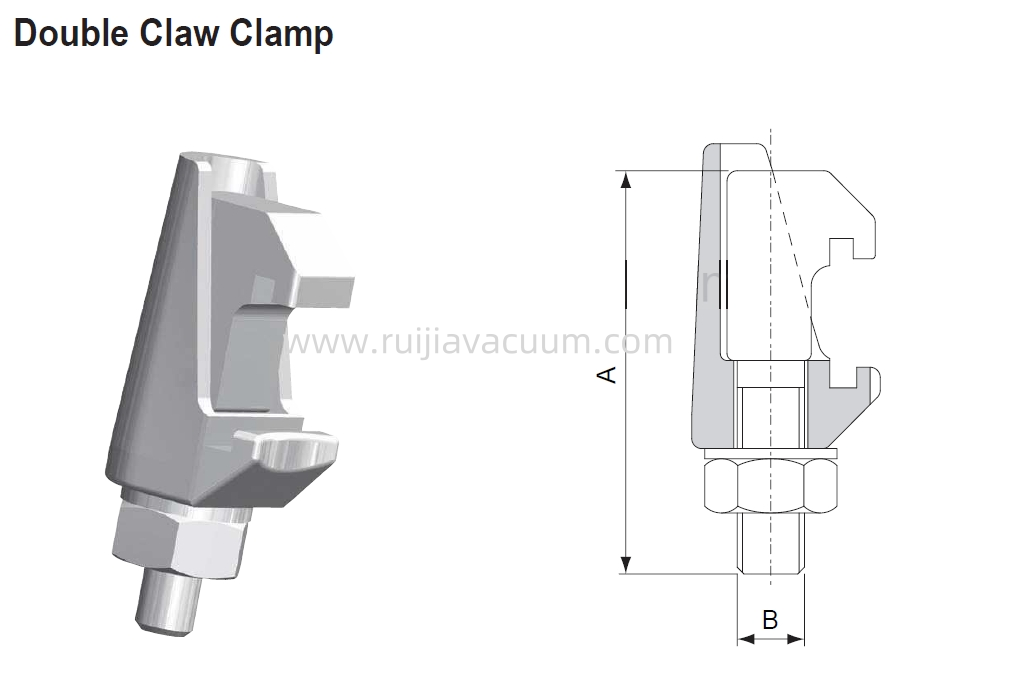

ISO Vacuum Double Claw Clamp 316L.S.S Galvanize Unit:mm
| Model No. | Material | A | B | Min.Quantity | Fit Flange |
| ISO63-250DCC316 | 316S.S | 61.5 | M10 | 4 | ISO63 |
| 4 | ISO80 | ||||
| 4 | ISO100 | ||||
| 4 | ISO160 | ||||
| 6 | ISO200 | ||||
| 6 | ISO250 | ||||
| ISO320-500DCC316 | 316S.S | 76 | M12 | 8 | ISO320 |
| 8 | ISO400 | ||||
| 12 | ISO500 | ||||
| ISO630DCC316 | 316S.S | 86 | M12 | 12 | ISO630 |
| ISO63-250DCC-ZP | Steel+Zn Plated | 61.5 | M10 | 4 | ISO63 |
| 4 | ISO80 | ||||
| 4 | ISO100 | ||||
| 4 | ISO160 | ||||
| 6 | ISO200 | ||||
| 6 | ISO250 | ||||
| ISO320-500DCC-ZP | Steel+Zn Plated | 76 | M12 | 8 | ISO320 |
| 8 | ISO400 | ||||
| 12 | ISO500 | ||||
| ISO630DCC-ZP | Steel+Zn Plated | 86 | M12 | 12 | ISO630 |
Special Sizes Available Upon Request.
