Item specifics

Size
ISO63,ISO160,ISO320.
Material
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material
Viton,Silicone,Buna-N seal
Standard
ISO Standard
Temperature
-200~800℃
Helium Leak Test
1×10 -9 Pa・m³/sec or less

Review

Description

ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure  Wholesale China feature
●Used in semiconductor manufacturing, national defense research etc.
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
● The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.

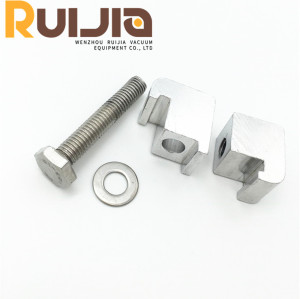

ISO vacuum single wall clamps
ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure                                    Wholesale China specifications
Product Name
ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure Wholesale China
Brand
RUIJIA
Size
ISO63,ISO160,ISO320.
Material
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material
Viton,Silicone,Buna-N seal
Standard
ISO Standard
Temperature
-200~800
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Packing
sealed plastic bag with a protective plastic cap.
ISO Vacuum clamp types
ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps.
Product parameters
ISO Vacuum 304.S.S Single Wall Clamps,ISO63-ISO320,Vacuum Atmosphere Pressure  Wholesale China                                          Unit:mm
Model No. Material A B C Fit Flange
ISO63-100SWC304 S.S. 304 M8 35 23 ISO63
ISO80
ISO100
ISO160-250SWC304 S.S. 304 M10 35 23 ISO160
ISO200
ISO250
ISO320-500SWC304 S.S.304 M12 50 30 ISO320
ISO400
ISO500
ISO63-100SWC-ZP Steel+Zn Plated M8 35 23 ISO63
ISO80
ISO100
ISO160-250SWC-ZP Steel+Zn Plated M10 35 23 ISO160
ISO200
ISO250
ISO320-500SWC-ZP Steel+Zn Plated M12 50 30 ISO320
ISO400
ISO500
Special Sizes Available Upon Request.
