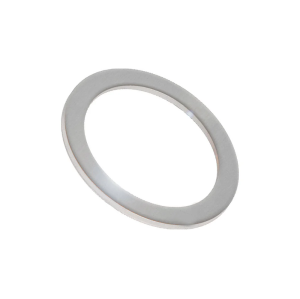

CF copper gasket for CF flange CF16-CF400
Item specifics
- Product Name
- CF copper gasket
- Size
- CF16-CF400
- Function
- Used for CF Flange
Review
Description
CF copper gasket used for CF flange Feature
●Copper exhibits excellent electrical and thermal conductivity along with remarkable flexibility. These inherent properties endow copper gaskets with fundamental physical capabilities and robust sealing performance.
●When the CF flange is properly assembled, the knife - edge presses firmly onto the flat gasket. This action forces the sealing material to spread outward towards the flange.
●The gasket is fully enclosed, ensuring that it won't protrude from the edges, even when subjected to extremely high bake - out temperatures.
●The CF flange is available in two versions: rotatable and non - rotatable. It comes with either through - holes or tapped bolt holes to meet different application requirements.
CF Copper Gasket Used For CF Flange Specifications
| Product Name | CF copper gasket |
| Brand | RUIJIA |
| Size | CF16-CF400 |
| Packing | sealed plastic bag with a protective plastic cap. |
Types | Copper gasket,silver plated copper gasket |
Product parameters
CF Copper Gasket Used For CF Flange Unit:mm
| Part# | Flange Size | A | B | Thickness(C) |
| CF16CS | CF16 | 21 | 16 | 2 |
| CF35CS | CF35 | 48 | 37 | 2 |
| CF63CS | CF63 | 82 | 63 | 2 |
| CF100CS | CF100 | 120 | 101 | 2 |
| CF150CS | CF150 | 171 | 152 | 2 |
| CF200CS | CF200 | 222 | 203 | 2 |
| CF250CS | CF250 | 272.7 | 254 | 2 |
| CF275CS | CF275 | 294 | 269 | 2 |
| CF350CS | CF350 | 376.7 | 356.50 | 2 |
| CF400CS | CF400 | 401.3 | 419.10 | 2 |
Special Sizes Available Upon Request.
