Item specifics

Product Name
CF Flanges Fittings Half Nipple Rotatable
Brand
RUIJIA
Size
CF16-CF200
Material
SS304, SS316L
Seal material
Oxygen free copper, silver plated copper

Review

Description

CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China feature
● CF vacuum half nipple rotatable are mainly used in ultra-high vacuum systems,
A series of tests are required before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
● The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
● When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.

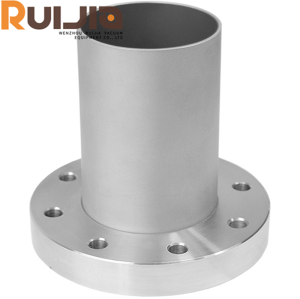

cf flange half nipple rotatable
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China specifications
Product Name
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China
Brand
RUIJIA
Size
CF16-CF200
Material
SS304, SS316L
Seal material
Oxygen free copper, silver plated copper
Standard
CF Standard
Temperature
-200~800
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Packing
sealed plastic bag with a protective plastic cap.
CF Vacuum flange types
CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange
Product parameters

CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China                                                                                      Unit:mm
Model No. Material Inch spec A B C
CR16HN S.S.304 1-1/3" 33.8 38 19.05
CR35HN S.S.304 2-3/4" 69.5 63 38.1
CR63HN S.S.304 4-1/2" 113.6 105 63.5
CR100HN S.S.304 6" 151.6 135 101.6
CR150HN S.S.304 8" 202.5 167 152.4
CR200HN S.S.304 10" 253.2 167 203.2
Special Sizes Available Upon Request.

Assembly Instructions for CF Flanges
1.Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edege counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
