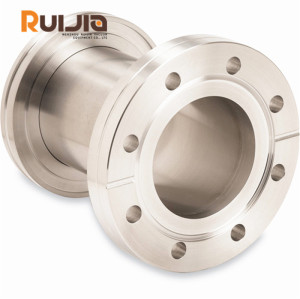

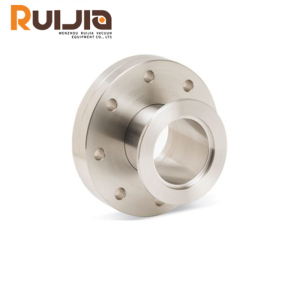

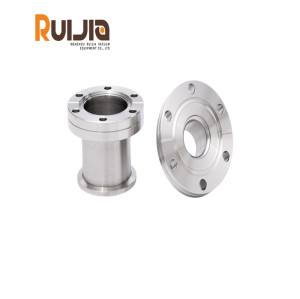

Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale

Item specifics

Size: CF16K10A-CF63K50A

Material: SS304, SS316L

Seal material: Viton,Silicone,Buna-N seal

Standard: KF-CF Standard

Temperature: -200~800℃

Working Pressure: Vacuum~atmosphere pressure

Review

Description

Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Feature

●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.

●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.

●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing

Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Specifications

Product Name	Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale
Brand	RUIJIA
Size	CF16K10A,CF16K16A,CF35K10A,CF35K16A,CF35K25A,CF35K40A,CF63K50A
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF-CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.

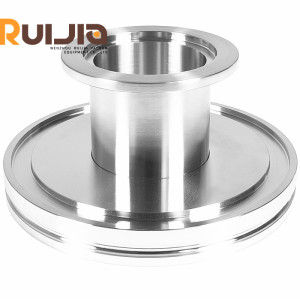

Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Product parameters

Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Unit:mm

Model No.	Material	A	B	C	D
CF16K10A	304S.S	33.8	30	43	12.7
CF16K16A	304S.S	33.8	30	43	19.05
CF35K10A	304S.S	69.5	30	45.3	12.7
CF35K16A	304S.S	69.5	30	45.3	19.05
CF35K25A	304S.S	69.5	40	45.3	25.4
CF35K40A	304S.S	69.5	55	45.3	38.1
CF63K50A	304S.S	113.6	75	49.5	50.8
