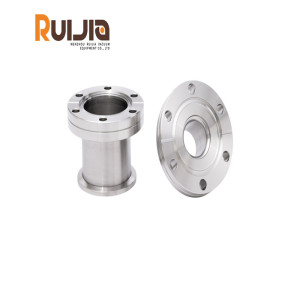

Product Name: Vacuum ANSI-KF Tubulated Flange Adaptor

Size: ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7K

Seal material: Viton,Silicone,Buna-N seal

Material: SS304, SS316L

Review

Description

Tubular Adaptor KF to ANSI Flange Adaptor feature

advantage

●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.

●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.

●Testing:Appearance inspection, size inspection, sealing performance testing

Tubular Adaptor KF to ANSI Flange Adaptor specifications

Product Name	KF Vacuum flange fittings Tees
Product Name	Vacuum ANSI-KF Tubulated Flange Adaptor
Brand	RUIJIA
Size	ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7KA50.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	ANSI-KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Flange Adaptor types	ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

Tubular Adaptor KF to ANSI Flange Adaptor parameters

Vacuum ANSI-KF Tubulated Flange Adaptor Unit:mm

Model No.	Material	Nominal	A	B	C	D	E	P.C.D
ASA4KA40	304S.S	1	108	55	42	38.1	15.8*4	79.4
ASA4KA50	304S.S	1	108	75	42	50.8	15.8*4	79.4
ASA5KA40	304S.S	1 1/2	127	55	42	38.1	15.8*4	98.4
ASA5KA50	304S.S	1 1/2	127	75	42	50.8	15.8*4	98.4
ASA7KA40	304S.S	3	190.5	55	42	38.1	19*4	152.4
ASA7KA50	304S.S	3	190.5	75	42	50.8	19*4	152.4
