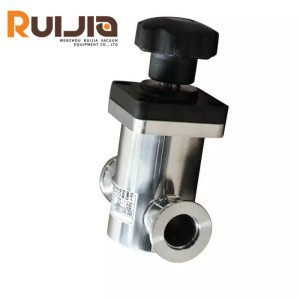

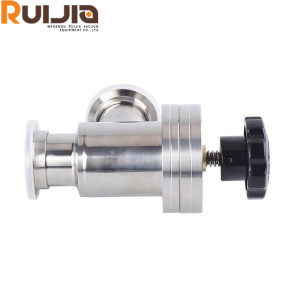

KF Vacuum Manual Y-Type in Line Angle Valve SS304 for Vacuum System Wholesale China
Item specifics
- Size
- KF16,KF25,KF40,KF50.
- Material
- SS304, SS316L
- Seal material
- Viton,Silicone,Buna-N seal
- Temperature
- -200~800℃
- Working Pressure
- Vacuum~atmosphere pressure
- Helium Leak Test
- 1×10 -9 Pa・m³/sec or less
Review
Description
KF Vacuum Manual Y-Type in Line Angle Valve SS304 for Vacuum System Wholesale China feature
●Application:Used in industrial fields that require high vacuum environments, such as semiconductor manufacturing, vacuum packaging, scientific research experiments, etc.
●Size:Depending on specific application requirements and design specifications
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF Vacuum Manual Y-Type in Line Angle Valve SS304 for Vacuum System Wholesale China specifications
|
Product Name
|
KF Vacuum Manual Y-Type in Line Angle Valve SS304 for Vacuum System Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Vacuum Manual Y-Type in Line Angle Valve SS304 for Vacuum System Wholesale China Unit:mm
| Model No. | O.D | A | B | C | D | Figure |
| KF16-M | 0.75 | 4 | 3.89 | 4.43 | 2.24 | 35 |
| KF25-M | 1 | 4.2 | 3.89 | 4.43 | 2.24 | 35 |
| KF40-M | 1.5 | 5.12 | 4.89 | 5 4/5 | 2.98 | 35 |
| KF50-M | 2 | 7 | 5.59 | 6.83 | 3.48 | 35 |
Special Sizes Available Upon Request.
