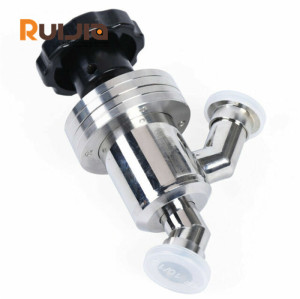

High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields

Item specifics

Size
KF16-KF25-KF40-KF50.
Material
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material
Viton,Silicone,Buna-N seal
Temperature
-200~800℃
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less

Review

Description

High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields feature
●Application:Used in high-tech fields such as semiconductor industry, flat panel display manufacturing, solar technology, vacuum coating, and other high-performance vacuum systems and research institutions.
●Size:Customize according to specific application requirements. This includes the diameter, length, and other relevant dimensional parameters of the valve
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions.



KF vacuum angle valves
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields  specifications
Product Name
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
Brand
RUIJIA
Size
KF16-KF25-KF40-KF50.
Material
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material
Viton,Silicone,Buna-N seal
Standard
KF Standard
Temperature
-200~800
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Packing
sealed plastic bag with a protective plastic cap.
Vacuum Valve types
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
Product parameters
Special Sizes Available Upon Request.
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields                                                                         Unit:mm
Model No. DN OVERALL DIMENSIONS
A A1 B C C1 D D1 E E1 F G G1 H H1
EVGD-16B(KF)S EVGD-16(KF)S 16 105 82 16 80 80 51 38 51 34 40 28 28 16 100
EVGD-25B(KF)S EVGD-25(KF)S 25 132 109 25 90 100 69 58 58 47 50 40 46 21 128
EVGD-40B(KF)S EVGD-40(KF)S 40 171 127 40 120 130 82 65 86 58 63 50 52 26 153
EVGD-50B(KF)S EVGD-50(KF)S 50 207 144 50 130 140 92 73 92 74 63 80 60 39 178
Special Sizes available Upon Request.
