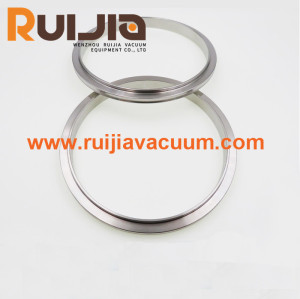

KF Vacuum centering Ring with outing ring &O'ring,Stainless steel,Seal material Viton,Silicone,Buna-N seal
Item specifics
- Size
- KF16,KF25,KF40,KF50
- Material
- SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
- Seal material
- Viton,Silicone,Buna-N seal
- Standard
- KF Standard
- Temperature
- -200~800℃
- Working Pressure
- Vacuum~atmosphere pressure
Review
Description
KF Vacuum centering Ring with outing ring&O'ring,Stainless steel,Seal material Viton, Buna-N seal,Silicone, feature
●used in vacuum systems or laboratory equipment to ensure a secure and leak-proof connection between two parts.
● KF (Karl-Fischer) vacuum centering ring, along with an outing ring and an O-ring
● these components work to create a robust, leak-proof seal in vacuum systems, which is essential in applications requiring high vacuum levels, such as in chemical analysis, semiconductor manufacturing, and research laboratories.
KF Vacuum centering Ring with outing ring&O'ring,Stainless steel,Seal material Viton,Silicone,Buna-N seal specifications
|
Product Name
|
KF Vacuum centering Ring with outing ring&O'ring,Stainless steel,Seal material Viton,Silicone,Buna-N seal
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum Centering Ring types
|
KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring adaptor & O’ring, KF centering ring with outing ring
|
||
Product parameters
KF Vacuum centering Ring with outing ring&O'ring,Stainless steel,Seal material Viton,Silicone,Buna-N seal Unit:mm
| Model No. | Material C/R | Marerial O/R | Material O'Ring | A | B | C | O'ring Size |
| KF16OCRVS | 304 S.S. | AL/SS | Viton/NBR | 16 | 32.5 | 8 | 5018 |
| KF25OCRVS | 304 S.S. | AL/SS | Viton/NBR | 25 | 42.5 | 8 | 5028 |
| KF40OCRVS | 304 S.S. | AL/SS | Viton/NBR | 40 | 57.5 | 8 | 5042 |
| KF50OCRVS | 304 S.S. | AL/SS | Viton/NBR | 50 | 77.5 | 8 | AS-330 |
| KF16OCRVS-316 | 316S.S. | AL/SS | Viton/NBR | 16 | 32.5 | 8 | 5018 |
| KF25OCRVS-316 | 316S.S. | AL/SS | Viton/NBR | 25 | 42.5 | 8 | 5028 |
| KF40OCRVS-316 | 316S.S. | AL/SS | Viton/NBR | 40 | 57.5 | 8 | 5042 |
| KF50OCRVS-316 | 316S.S. | AL/SS | Viton/NBR | 50 | 77.5 | 8 | AS-330 |
*O'Ring color for NBR material is black, brown is available upon request.*O'Ring color for Viton material is brown, black is available upon reques
Production Center
Application
Applications for this system are as varied as the imagination can make them.
Some examples are:
*Roughing and foreline plumbing for large vacuum system.
*High vacuum, high conductance, inter-connections.
*Modular system which will be modified frequently.
*System requiring frequent cleaning.
*Experimental system in research laboratories.
