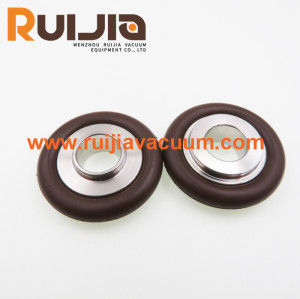

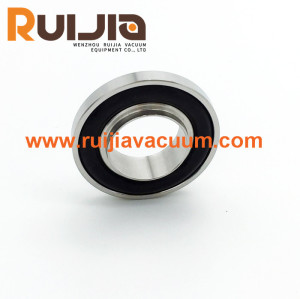

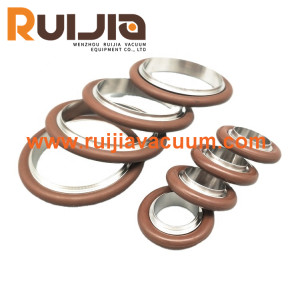

Stainless Steel KF Vacuum Centering Ring KF10-50
Stainless Steel KF Vacuum Centering Ring KF10-50
Stainless Steel KF Vacuum Centering Ring KF10-50
Stainless Steel KF Vacuum Centering Ring KF10-50
Stainless Steel KF Vacuum Centering Ring KF10-50
Stainless Steel KF Vacuum Centering Ring KF10-50

Item specifics

Product Name
KF Vacuum centering ring
Standard
KF Standard
Seal material
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test
1×10 -9 Pa・m³/sec or less

Review

Description

Stainless Steel KF Vacuum Centering Ring KF10-50 feature
advantage
●Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
● This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel, aluminium EN1.4301, EN1.4404
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
Stainless Steel KF Vacuum Centering Ring KF10-50 specifications
Product Name KF Vacuum centering ring
Brand RUIJIA
Size KF10,KF16,KF25,KF40,KF50
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pam³/sec or less
Packing sealed plastic bag with a protective plastic cap.

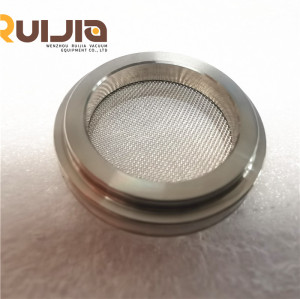

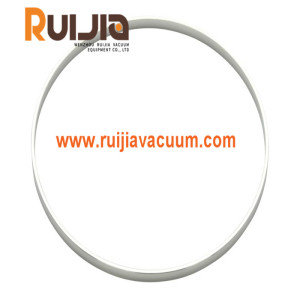

KF Vacuum Centering Ring types KF centering ring,KF meshed centering ring, KF overpressure ring, KF centering ring & O’ring, KF centering ring with outing ring
Stainless Steel KF Vacuum Centering Ring KF10-50 parameter
KF Centering Ring                                                                                             Unit: mm
Model No. Material C/R A B C D
KF1OCRS 304 S.S 10 12 8 3.9
KF16CRS 304 S.S 16 17 8 3.9
KF25CRS 304 S.S 25 26 8 3.9
KF40CRS 304 S.S 40 41 8 3.9
KF50CRS 304 S.S 50 52 8 3.9
KF1OCRA AL 10 12 8 3.9
KF16CRA AL 16 17 8 3.9
KF25CRA AL 25 26 8 3.9
KF40CRA AL 40 41 8 3.9
KF50CRA AL 50 52 8 3.9
*O'Ring color for NBR material is black, brown is available upon request.
*O'Ring color for Viton material is brown, black is available upon request.
