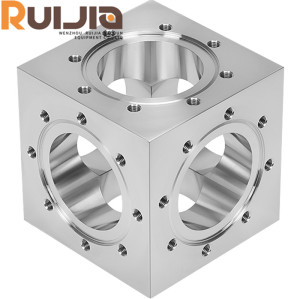

CF Vacuum 6-way cubes Metric Thread
Size
CF16,CF35,CF50,CF63,CF100,CF150,CF200
Seal material
Oxygen free copper, silver plated copper
Material
SS304, SS316L

Review

Description

CF Vacuum Cubes with Metric Thread feature
advantage
●Applied to various occasions that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, etc
●Thread type:Metric Thread, the thread size have M4,M6,M8.
●Test:Cleanliness testing, packaging environment testing, pressure testing, temperature testing

CF Vacuum Cubes with Metric Thread specifications
Product Name CF Vacuum 6-way cubes Metric Thread
Brand RUIJIA
Size CF16,CF35,CF50,CF63,CF100,CF150,CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pam³/sec or less
Packing sealed plastic bag with a protective plastic cap.

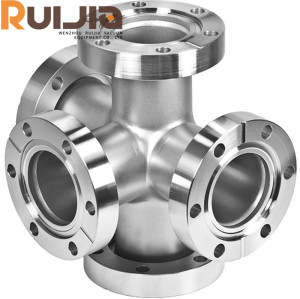

CF flange fittings types CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
CF Vacuum Cubes with Metric Thread parameters
CF Vacuum 6-way cubes Metric Thread                                                                                                                       Unit:mm
Model No. Flange Size Material A B Thread Size Thread Depth
CF16CUM CF16 304S.S 17.25 15.7 M4 6
CF35CUM CF35 304S.S 35.05 38.1 M6 9
CF50CUM CF50 304S.S 43 50.8 M8 9
CF63CUM CF63 304S.S 56.65 63.5 M8 12
CF100CUM CF100 304S.S 76.2 102 M8 12
CF150CUM CF150 304S.S 101.6 152.4 M8 12
CF200CUM CF200 304S.S 127 203.2 M8 12
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
