CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China
Item specifics
- Size
- CF16,CF35,CF63,CF100,CF150
- Material
- SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
- Seal material
- Oxygen free copper, silver plated copper
- Temperature
- -200~800℃
- Working Pressure
- Vacuum~atmosphere pressure
- Packing
- sealed plastic bag with a protective plastic cap.
Review
Description
CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China feature
●Applied in industries, laboratory equipment, scientific research instruments, medical equipment and other fields, it ensures the stable operation and efficient work of the system.
●Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation
●Testing:Appearance inspection, size inspection, sealing performance testing
CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China specifications
|
Product Name
|
CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150 | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|

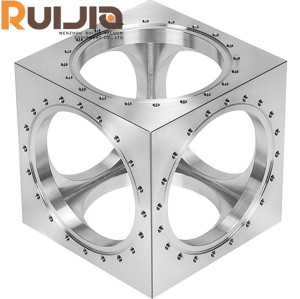

CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flange Fittings Tees-Fixed Stainless Steel Wholesale China Unit:mm
| Model No. | Material | A | B | C | D |
| CR16T90 | 304S.S | 37.5 | 19.05 | 33.8 | 75 |
| CR35T90 | 304S.S | 62.5 | 38.1 | 69.5 | 125 |
| CR63T90 | 304S.S | 85.7 | 63.5 | 113.6 | 171.4 |
| CR100T90 | 304S.S | 109.5 | 101.6 | 151.6 | 219 |
| CR150T90 | 304S.S | 139.7 | 152.4 | 202.5 | 279.4 |
Special Sizes Available Upon Request.
