Item specifics

Size
KF25,KF40,KF50
Material
SS304, SS316L
Seal material
Viton,Silicone,Buna-N seal
Temperature
-200~800℃
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less

Review

Description

KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China Feature
●Application areas: Used in various industries, including but not limited to the construction and maintenance of engineering projects in industries such as petrochemicals, petroleum and natural gas, liquefied gas, fertilizers, power plants, nuclear power,shipbuilding,pharmaceuticals, food hygiene, and urban construction.
● Packaging: shockproof packaging, dust-proof packaging, etc., to ensure that the product remains in good condition when it reaches the user's hands
● Testing: Appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, static pressure testing, burst testing, as well as sealing and corrosion resistance testing.

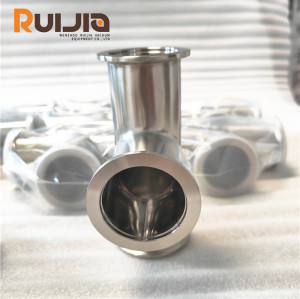

KF vacuum  fittings reducing tees
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China specifications
Product Name
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China

Brand
RUIJIA
Size
KF25,KF40,KF50
Material
SS304, SS316L
Seal material
Viton,Silicone,Buna-N seal
Standard
KF Standard
Temperature
-200~800
Working Pressure
Vacuum~atmosphere pressure
Helium Leak Test
1×10 -9 Pa・m³/sec or less
Packing
sealed plastic bag with a protective plastic cap.
KF flange fittings types

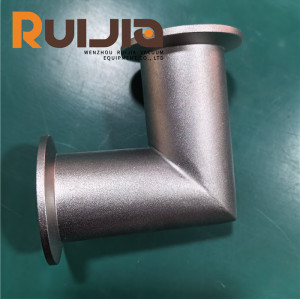

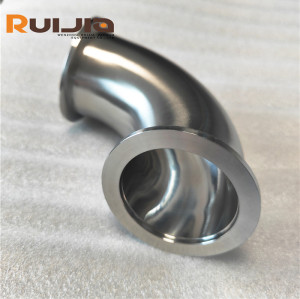

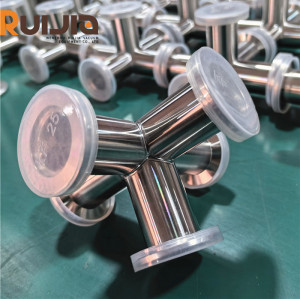

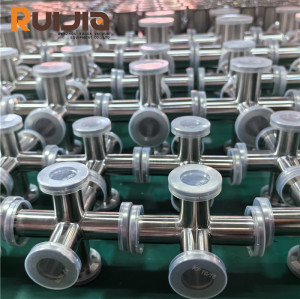

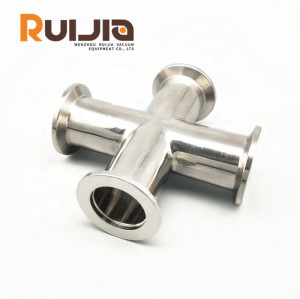

KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.
Product parameters
KF Vacuum Stainless Steel Flange Fittings Vacuum Reducing Tees Wholesale China                                                               Unit:mm
Model No. Material A B C D E F Available Area
KF25UT16A 304S.S 52 37.5 40 30 25.4 19.05 U.S.A
KF40UT16A 304S.S 61 52 55 30 38.1 19.05 U.S.A
KF40UT25A 304S.S 61 57.8 55 40 38.1 25.4 U.S.A
KF50UT16A 304S.S 80 58.2 75 30 50.8 19.05 U.S.A
KF50UT25A 304S.S 80 64.1 75 40 50.8 25.4 U.S.A
KF50UT40A 304S.S 80 67.3 75 55 50.8 38.1 U.S.A
Model No. Material A B C D E F Available Area
KF25UT16E 304S.S 52 40 40 30 25.4 19.05 Europe
KF40UT16E 304S.S 65 40 55 30 38.1 19.05 Europe
KF40UT25E 304S.S 65 50 55 40 38.1 25.4 Europe
KF50UT16E 304S.S 70 50 75 30 50.8 19.05 Europe
KF50UT25E 304S.S 70 65 75 40 50.8 25.4 Europe
KF50UT40E 304S.S 70 65 75 55 50.8 38.1 Europe
Special Sizes Available Upon Request.
