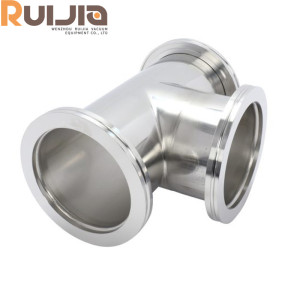

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China
Item specifics
- Size
- ISO63,ISO80,ISO100,ISO160
- Material
- SS304, SS316L
- Seal material
- Viton,Silicone,Buna-N seal
- Temperature
- -200~800℃
- Working Pressure
- Vacuum~atmosphere pressure
- Helium Leak Test
- 1×10 -9 Pa・m³/sec or less
Review
Description
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Feature
●Application：Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.
●Finish:polish surface or sand blasting surface.
●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Specifications
|
Product Name
|
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China
|
||
Brand | RUIJIA | ||
Size | ISO63,ISO80,ISO100,ISO160 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO flange fittings types
|

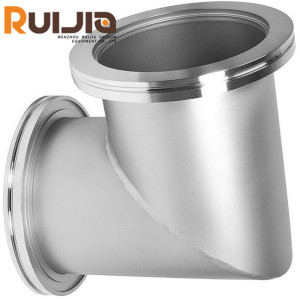

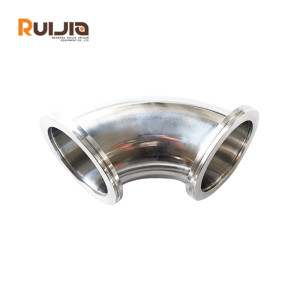

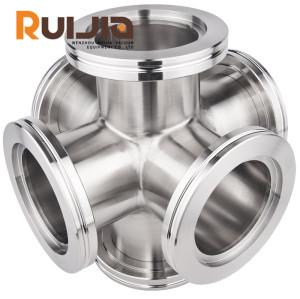

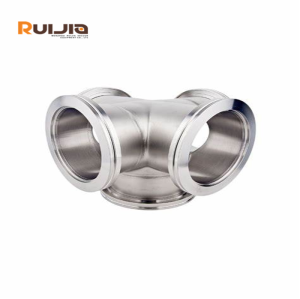

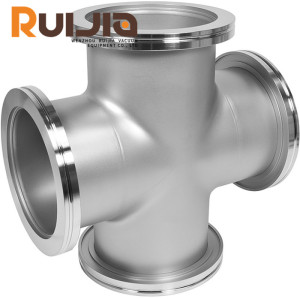

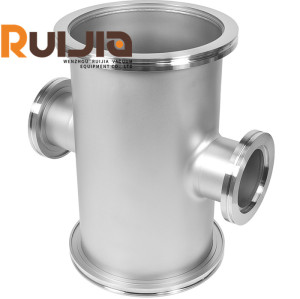

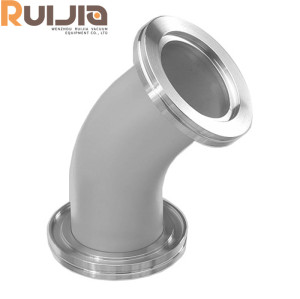

ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.
|
||
Product parameters
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Unit:mm
| Model No. | Size | A | B |
| ISOK-RT-80×63 | ISO80×ISO63 | 177.7 | 88.9 |
| ISOK-RT-100×63 | ISO100×ISO63 | 209.7 | 101.6 |
| ISOK-RT-100×80 | ISO100×ISO80 | 209.7 | 101.6 |
| ISOK-RT-160×63 | ISO160×ISO63 | 266.6 | 126.9 |
| ISOK-RT-160×80 | ISO160×ISO80 | 266.6 | 126.9 |
| ISOK-RT-160×100 | ISO160×ISO100 | 266.6 | 130.3 |
Special Sizes Available Upon Request.
