KF vacuum Compressible bellows NW vacuum Flexible Hoses KF16-KF100
Item specifics
- Standard
- KF / CF / ISO flange type
- KF Vacuum Bellows Material
- SUS304, SUS316L
- Wall Thickness
- 0.15mm,0.2mm,0.25mm
- Temperature
- -200~800℃
- Elasticity of bellows
- 40%
Review
Description

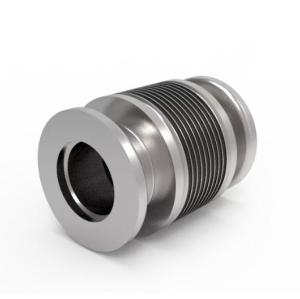

KF/NW Vacuum Compressible Bellows feature
Ruijia vacuum flexible hoses range consists of lots of different type of flexible metal hoses, such as KF / CF / ISO flange type , Braided cover and One Flange Rotatable. KF Vacuum bellows has been used in many ways vacuum, pressure, and fluid transport plumbing by Molding method, and bone geometry, material, and material thickness, etc depending on the environment.
● Soft, flexible, easy to bend, vibration absorbing
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Delicate Welding to ensure integrity and reliability
Stainless Steel KF/NW Vacuum Bellows specifications
| Bellows Type | KF Vacuum Compressible Bellows |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | KF / CF / ISO flange type |
| Size Range | KF16-KF100,ISO63-ISO320, CF16,CF35,CF63,CF100 |
| Length | 250mm,500mm,750mm,1000mm,1500mm,2000mm,3000mm or as customer request |
| Wall Thickness | 0.15mm,0.2mm,0.25mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
KF/NW Vacuum Compressible Bellows Product parameters
| Unit:mm | |||||
| Item No. | Flange Size | Material | A | B | C |
| KF16FXC100 | NW16 | SS304 | 30 | 100 | 80 |
| KF25FXC100 | NW25 | SS304 | 40 | 100 | 80 |
| KF40FXC100 | NW40 | SS304 | 55 | 100 | 80 |
| KF50FXC100 | NW50 | SS304 | 75 | 100 | 80 |
| KF63FXC100 | NW63 | SS304 | 95 | 100 | 80 |
| KF80FXC100 | NW80 | SS304 | 110 | 100 | 80 |
| KF100FXC100 | NW100 | SS304 | 130 | 100 | 80 |
| **Material SS316, Teflon & Customized Length Upon Request | |||||
