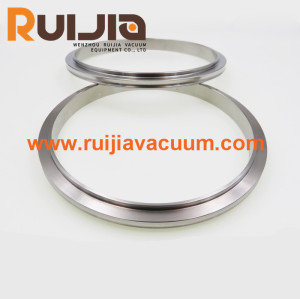

Aluminium ISO63/ISO100 vacuum outer ring for center ring in vacuum system
Aluminium ISO63/ISO100 vacuum outer ring for center ring in vacuum system

Item specifics

Product Name
ISO Vacuum outer ring
Standard
ISO Standard
Seal material
Aluminium
Helium Leak Test
1×10 -9 Pa・m³/sec or less

Review

Description

Aluminium ISO63 Vacuum Outer Ring feature
Advantage
● The ISO Vacuum outer Ring is a key component in precision engineering. It is especially vital in applications that demand extremely high accuracy and tight tolerances.
● Such applications include semiconductor manufacturing, optics assembly, and any high - precision part - handling processes that rely on vacuum control.
● Typically, it is crafted from materials capable of withstanding vacuum conditions without outgassing. Common materials are stainless steel 304/316, as well as aluminium alloys EN1.4301 and EN1.4404.
● The outer ring is designed to ensure airtight seals within a vacuum environment. This is crucial as it prevents leaks that could otherwise undermine the integrity of the vacuum chamber.


Aluminium ISO63 Vacuum Outer Ring specifications
Product Name
Aluminium ISO63 Vacuum Outer Ring
Size
ISO63-ISO250
Material
Aluminium
tempereture
-200~800℃
working pressure
Vacuum~atmosphere pressure
Aluminium ISO63 Vacuum Outer Ring parametric
Size ISO63 ISO100 ISO160 ISO200 ISO250
AD(Outer diamater) 94mm 128mm 179mm 239mm 287mm
L1(Length) 3.9mm 3.9mm 3.9mm 3.9mm 3.9mm
Production Center
Packing & Shipping
Application
