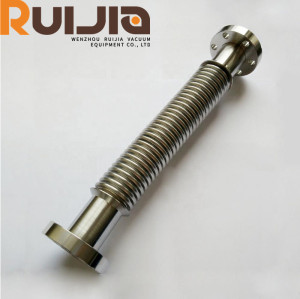

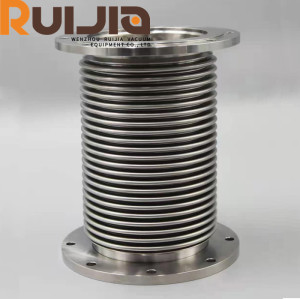

SS304/SS316L CF16 Vacuum edge weld bellows for vacuum system
SS304/SS316L CF16  Vacuum edge weld bellows for vacuum system
SS304/SS316L CF16  Vacuum edge weld bellows for vacuum system
SS304/SS316L CF16  Vacuum edge weld bellows for vacuum system

Item specifics

Bellows Type
SS304/SS316L CF16 Vacuum edge weld bellows
Material
SS304/SS316L
Standard
CF Standard
Size Range
CF16,CF40,CF63
Length
48.5mm,63mm,65mm,76mm or as customer request
Lifecycles
10000

Review

Description

SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios Feature
●Flexible Connection
Edge welded bellows are flexible connecting parts between different vacuum flanges or end fittings. They can be easily integrated into various setups.
● High - Flexibility Applications
These bellows, known for their great flexibility, are used in many applications.
● Functions in Vacuum and Low - Pressure
In vacuum systems or when there are low differential pressures, edge welded bellows absorb movements, decouple components, allow lead - through of items, and do volume compensation.



Stainless steel 304/316L Vacuum edge weld bellows Specifications
Bellows Type
SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios
Material
SS304/SS316L
Standard
CF Flange connection
Size Range
CF16,CF40,CF63
Length
48.5mm,63mm,65mm,76mm or as customer request
Spring rate axial
5.3N/mm
Working Pressure
Vacuum~atmosphere pressure
Lifecycles
10000
Product parameters
SS304/316L CF16 Vacuum edge weld bellows                                                                                                         Unit:mm
Size AD D1 D2 LC LF LE HUB
EWB16R-20 34 31.5 16 48.5 58.5 68.5 20
EWB40R-10 70 59 39 63 68 73 10
EWB40R-20 70 59 39 65 75 85 20
EWB63R-20 114.3 90 65 76 86 96 20
Special Sizes Available Upon Request.
