High Vacuum Chambers Stainless Steel China Manufacture
Item specifics
- Product Name
- High Vacuum Chambers stainless steel 304/316
- Finish
- sandblasted, Electric polishing, manual polish
- Seal material
- SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
- Helium Leak Test
- 1×10 -9 Pa・m³/sec or less
Review
Description
High Vacuum Chambers Stainless Steel feature
advantage

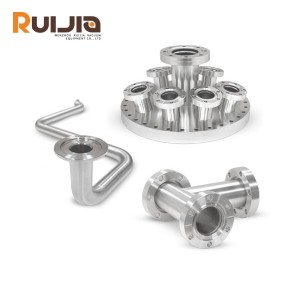

●Application: Available in standard NW or CF ports, flanges, and related accessories, Vacuum performance down to 1 x 10-6Torr with the appropriate vacuum pumps
●Size: According to good vacuum practice and customers' demands.
●Testing: Helium leak tested for quality assurance and can be adapted to technical requirements, can be equipped with the necessary accessories
High Vacuum Chambers Stainless Steel specifications
| Product Name | High Vacuum Chambers stainless steel 304/316 |
| Brand | RUIJIA |
| Size | According to customers demand. |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Finish | sandblasted, Electric polishing, manual polish |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Shape | Spherical, Cylindrical, Box and rectangular, Bell jar, D-shape, Custom |
| Vacuum Chamber types | high vacuum (HV) chambers. Design, construction, manufacturing and all inspections are done according to good vacuum practice and customers demands. |
High Vacuum Chambers Stainless Steel parameter
Production Center
Packing & Shipping
Application
