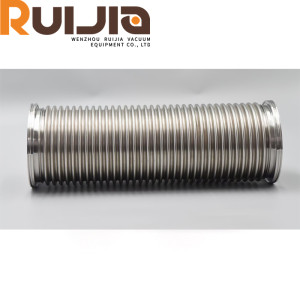

ISO Vacuum Compressible Bellows ISO63-ISO100 SS304/SS316L
Item specifics
- Bellows Type
- Vacuum ISO Compressible bellows connections
- Material
- Bellows SUS304, SUS316L ；Flange SUS304, SUS316L
- Standard
- ISO
- Size Range
- ISO63-ISO100
Review
Description
ISO Vacuum Compressible Bellow feature
ISO Vacuum Compressible Bellow Advantage
● Soft, flexible, easy to bend, vibration absorbing
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Delicate Welding to ensure integrity and reliability
ISO Vacuum Compressible Bellow specifications
| Bellows Type | Vacuum ISO Compressible bellows connections |
| Material | Bellows SUS304, SUS316L |
| Flange SUS304, SUS316L | |
| Standard | ISO |
| Size Range | ISO63-ISO100 |
| Length | 140mm,187mm,250mm,500mm,750mm,1000mm |
| Wall Thickness | 0.2mm,0.25mm,0.3mm |
| Elasticity of bellows | 40% |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Leakage rate | 1×10 -9 Pa・m³/sec or less |
Product parameters
IS0 Compressible Bellows Connections
| Unit:mm | |||||
| Item No. | Flange Size | Material | A | B | C |
| ISO63FXC140 | ISO63 | SS304 | 95 | 140 | 125 |
| ISO80FXC187 | ISO80 | SS304 | 110 | 187 | 160 |
| ISO100FXC187 | ISO100 | SS304 | 130 | 187 | 160 |
| **Material SS316, Teflon & Customized Length Upon Request | |||||
